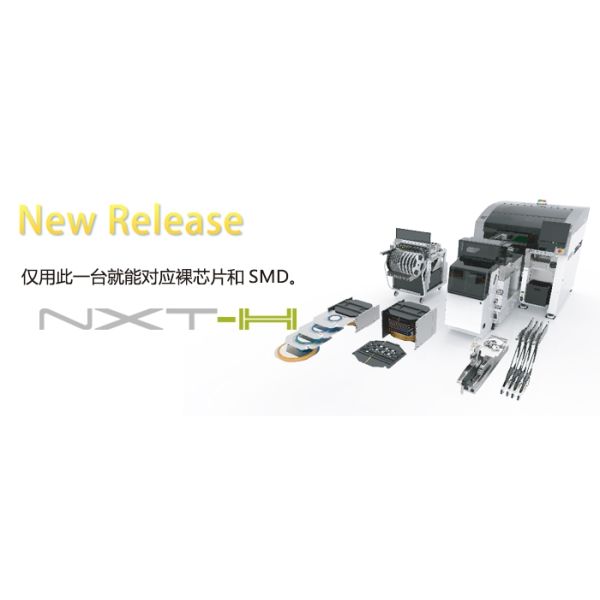

Fuji placement machine NXT-H A hybrid module high-speed Fuji SMT machine multi-function SMT machine:
Fuji SMT machine NXT -h product features:
1, mixed pasted on bare chip and SMD components
A NXT - H can at the same time corresponding to the wafer, plate loading and take charge.
Simply replace the feed equipment, feeding way can completely change (mainly conveyor belt charging or mainly conveying plate loading, wafer).
2, high precision SMT
On the basis of high rigidity structure design, configuration of linear motor drive and a high camera function. Through the advanced control technology and the best increase with SMT, high precision, high quality of SMT.
3, equipped with HEPA filter in the cleanliness level can reach 1000
On the premise of use in clean room, and make corresponding dust-free XY manipulator. Can be configured HEPA filters, to achieve more suitable work environment for semiconductor devices.
4, easy to operate
15 inches large touch-screen and graphical interface. The operation of the machine main body and MWU12i implements the integration. Not only to the corresponding wafer graph information management also can change for the format.
* user format for individual
| The size of the target circuit board (L × W) : 48mm × 48mm ～610mm × 380mm (Specifications for individual transport rails) |
| Circuit board loading time: 4.3sec |
| Mounting accuracy ( differs depending on the mounted head and other conditions. ) : H24G :: ± 0.020mmcpk ≧ 1.00 |
| Machine size: L:1360mm, W:2119mm, H:1478mm |
| Wafer supply unit MWU12i : 12 -inch wafer size corresponding |
| When using the adapter, you can insert 4 , 6 , and 8 inch wafers into the box . |
| Fixed material station unit 16 material troughs : W8(4) ～W88mm |
| Rotary dipping flux unit NG conveying rail, etc. |
| Target wafer size: 4 to 12 inches ( adapter is required for 4 to 8 inches) |
| Target chip size: H24G: □ 0.2mm ～□ 5mm |
| Maximum wafer types: 25 types |
| Standard jacking Pot : φ 12 , φ 23 , □ 30 , □ 45 |
